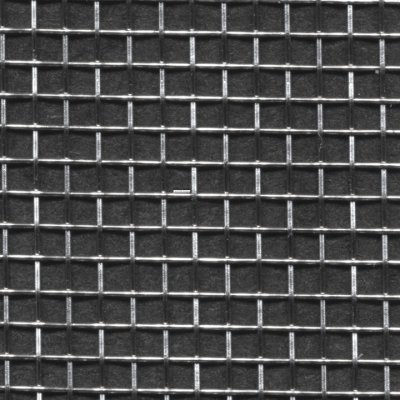

Adamantan 10 is a fine mesh woven, corrosion resistant special stainless steel mesh for shielding from high frequency electromagnetic waves and low frequency electric alternating fields. Placed under plaster on stone walls or behind plaster or wood in ceilings, walls and floors
The stainless steel fabric is a high-quality manufactured and processed material. Unlike ordinary stainless steel fabrics, this one has been degreased, de-oiled and also cleaned. The fabric is dimensionally stable and very tear-resistant.
Delivered on a roll 20 meters long and 1 meter wide. Delivery time 24-48 hours. In case of not having the product at stock, the delivery time can increase up to 3-5 days. You´ll get information regarding the delivery time with your order confirmation, sent by email.
Scope of application
1. Roof area exterior + interior
2. Wall and roof area exterior + interior (surface-mounted and flush-mounted – with additional reinforcement)
3. Floor area (beneath floating floors, parquet, and wooden floorboards)
Notes. To screen the low frequency alternating fields, the fabric can be integrated to the functional-equipotential bonding. The therefore used stainless steel earthing tape ( EEB ) is listed at the accessories for this fabric. Attention: Conventional, low priced earthing tapes are not processed and don´t apply sufficient electrical contact, so the contact resistance is increased. Furthermore the adhesion within the spattling or glueing compound is usually insufficient.
Technical data
Color: Silver
Length by the meter / roll 20lfm ≈ 20qm
Width 100 cm ± 2%
Grammage: 490 g/m² ±10%
Thickness: 0,35 mm ± 10%
Composition: Stainless steel, surface activated (deoiled, degreased)
Mesh size: ~ 1,0 mm x 1,0 mm
Electrical conductivity < 0,6 Ω/□
Features vapour diffusive, corrosion-resistant
Basis for inspection IEEE-Standard 299-1997
MIL-Standard 285 VG-Norm 95 370, Part 15
TEM-Adapter 0,01-4,0 GHz
Shield attenuation
max. in dB ~ 51 dB
Shield attenuation
max. in % > 99,999 %
Handling
The stainless steel fabric is a high-grade manufactured and processed material. In contrast to common stainless steel fabrics, this one has been degreased, de-oiled and cleaned additionally. The fabric is dimension stable and highly tear-resitant.
Fire protection
Classification A1 non-flammable building material DIN 4102:1994
Important informations The grounding accessories are not included in the delivery. Please note our information sheet “Security warnings and grounding regulations” and the product-specific processing notes. Please calculate an overlap of the individual sheets of about 5 to 10 cm for the assembly/installation of Adamantan 10 (about +10% of the overall surface). The individual sheets must lie flatly on top of one another.
Warranty
The warranty for this product at appropriate usage is 2 years
Product data sheet
