Product Description:

Shielding paint for shielding high-frequency radiation (HF) and low-frequency electric fields (LF). Breathable, solvent-free, plasticizer-free and low-emission. Standard paint with the best all-round properties – one paint suitable for everything. Up to 90 dB at 40 GHz. TÜV-SÜD certified.

As shielding paint for rooms and buildings
Standard paint with the best all-round properties – one paint suitable for everything. Up to 90 dB at 40 GHz. TÜV-SÜD certified. Extremely high shielding in all situations. Suitable for very difficult substrates due to its high adhesive tensile strength. This paint is very finely pigmented, very easy to process and forms a finely blended hard film. The HSF54 forms the most even surface out of all our shielding paints.

Screening attenuation

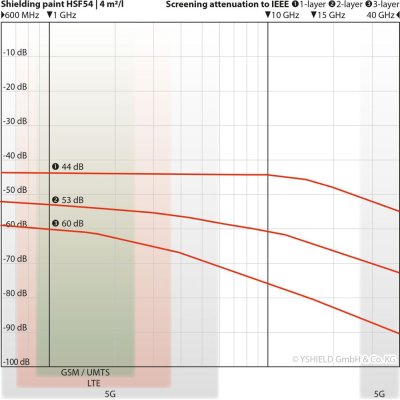

At a yield of 4 sqm/l:
At 1 GHz: Single layer 44 dB | Double layer 53 dB | Three layer 60 dB

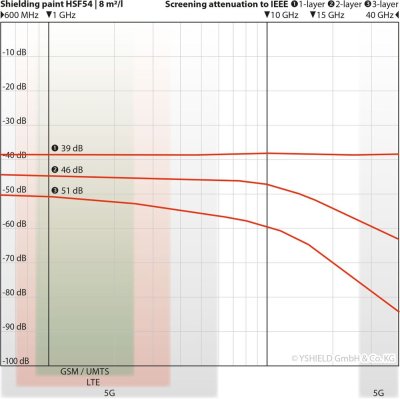

At a yield of 8 sqm/l:
At 1 GHz: Single layer 39 dB | Double layer 46 dB | Three layer 51 dB

Underground
Excellent adhesion on almost all substrates interior and exterior.

Top coating
Preferably covered with plastic bonded water-based emulsion paints, dispersion silicate paints, facade paints or silicon resin paints.

Optional: Fiber additive AF3
For crack bridging and a better grounding we advise our fiber additive AF3 with long conductive carbon fibers.

Frost resistance
This product is frost resistant (proved for 5 frost-/thaw cycles) and can be shipped throughout the year by air cargo or ship.

Ingredients
Water, natural graphite, pure acrylics dispersion, carbon black, additives, preservative (BIT, INN, MIT).

No nanotechnology
YSHIELD® shielding paints are developed in accordance with strict ecological criteria. They use, for example, the carbon black with the lowest emission possible on the market and untreated natural graphite. They consciously do not use graphene, a nanomaterial where the hazard potential is still completely unknown.

Grounding
Can be contacted and grounded to protect against low frequency electric fields (LF), but does not have to be grounded. Grounding does not affect protection against WiFi and other microwave radiation, but reduces common electric fields. Grounding is not difficult. You can e.g. put a cord between Wall plate GW in the color HSF54 and water pipe to element. We have all the accessories for it: tape EB1, wall plate GW, cable GC and pipe holder GT. Earthing click here

Earth fault breaker should be provided.

The paint must not be painted inside electrical boxes because it is conductive.

Shielding attenuation HF & LF
This product shields high frequency electromagnetic fields (HF). Unless otherwise stated, the indicated dB-values apply to 1 GHz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.

This product with an electrically conductive surface shields low-frequency alternating electric fields (LF).

Laboratory & expert report of shielding attenuation up to 40 GHz
YSHIELD® have already invested in their own professional EMV laboratory years ago. They not only use it to create their laboratory screening reports but also to check each batch daily. Additionally, they have all our products checked by an independent, well-respected expert. Double checked for twice the safety.

Ready for 5G
Some companies offer "special" 5G-products. This products shields all 5G-frequencies, even without advertising this! Find two gray bars in all shielding diagrams with the 5G frequency spectrums FR1 (600 MHz – 6GHz) and FR2 (24 GHz – 40 GHz).
